Mutyam Steel

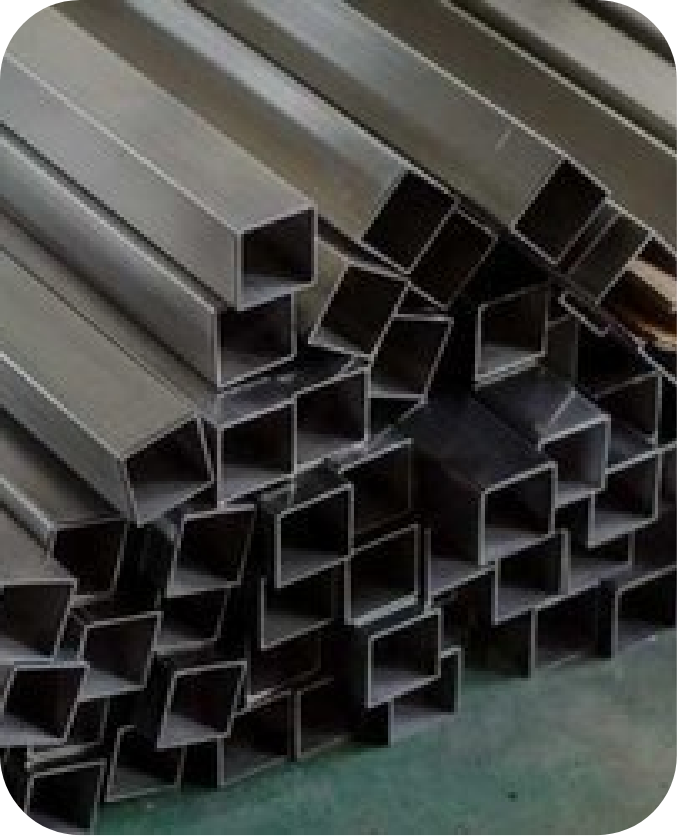

Manufactured using high quality pure steel HR coils up to a maximum size of 400x400 mm, Tata Structura Square Hollow Section are light in weight & having strength. The sections are easy to bend & ideal for welding making it perfect to construct unique & aesthetically appealing structures without compromising strength, beauty & durability. With an assured yield strengths ranging from 210 MPa, 310 MPa, 355 MPa and 420 MPa, these hollow sections or steel tubes can be designed sustain heavy loads with ease. Unlike other secondary steel sections, the chemical composition of steel will not allow any cracks to develop during welding. Thus, making it more suitable to use for a quality steel construction that saves cost as well as time.

The HR coils used to manufacture the steel sections are made in accordance with the highest degree of international quality & the steel tubes are manufactured as per IS 4923. The sections also come with a test certificate which is proof that the steel tubes have undergone and passed all the necessary quality tests.

To know about our other hollow sections offered by Tata Structura check out Rectangular Hollow Section and Circular hollow section.

Square Hollow Section Weight Table

Tata Structura Square Hollow Sections are manufactured from a minimum size of 20x20 mm to the maximum size of 250x250 mm with the minimum thickness of 1.6 mm to maximum of 10 mm.

Weight Calculator Product Brochure

Buy Now

Applications of Hollow Sections

The Tata Structura hollow sections can be used for an array of applications such as Industrial Sheds Structures | Canopies, Glazing Structures of Residential, Commercial & Infrastructural Projects | Trestles & Conveyor Galleries for Bulk Material Handling | Solar Panel Supports | Foot Over Bridges | Platform Shelters & Canopies.

Features of Hollow Sections

Each steel section of Tata Structura features a high strength-to-weight ratio making it ideal for welding, shaping and construction of strong yet beautiful structures.

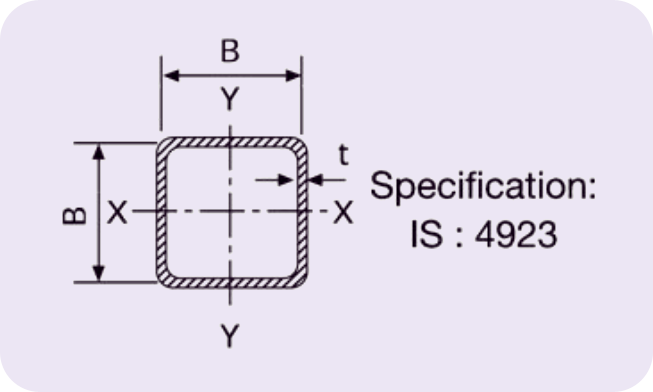

Square Hollow Section (SHS) Size B x B (mm)	Thickness (mm)	Weight (KG/Metre)
25 x 25	2.6	1.69
25 x 25	2.6	1.69
25 x 25	2.6	1.69
25 x 25	2.6	1.69
25 x 25	2.6	1.69
25 x 25	2.6	1.69
25 x 25	2.6	1.69
